Beispiele

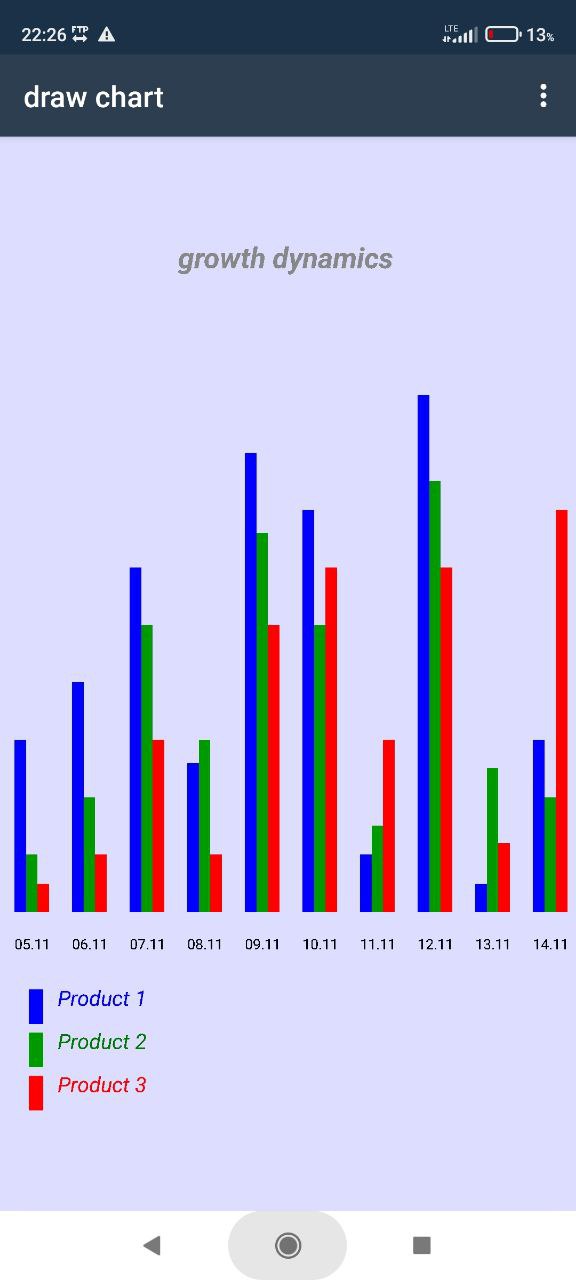

05_20_draw_chart_3columns
// file example_chart2 with header
//#date#col1#col2#col3
//0511 300 100 50
//0611 400 200 100
//0711 600 500 300
//0811 260 300 100
//0911 800 660 500
//1011 700 500 600
//1111 100 150 300
//1211 900 750 600
//1311 50 250 120
//1411 300 200 700
//=====================================
scene=1 name="draw chart " mode=graphic cs=_gray bgcolor=#ddddff
section init
if #_orientation == portrait
#canvas=1
#height_of_chart=600
else
#canvas=2
#height_of_chart=250
endif
#_scaling_mode=full
#offsetx=20
clear canvas=#canvas
file name=example_chart2 record=(#date, #col1, #col2, #col3) directory=#_directory_files_examples
read file=example_chart2 header=yes
// when reading a file, #col1_array, #col2_array, #col3_array will be created
// #_counter_of_records contains the number of records from the file example_chart2
// get max value of 2 column
#max_col1 = $array.max(#col1_array)
// get max value of 3 column
#max_col2 =$array.max(#col2_array)
// get max value of 4 column
#max_col3 =$array.max(#col3_array)
// get max value of 3 variables #max_col1,#max_col2,#max_col3
#max=$math.max(#max_col1,#max_col2)
#max=$math.max(#max,#max_col3)
if #canvas==2
#max=#max/1000*700
endif
// calculating the width for each column
#width_column= (#_width_virtual/#_counter_of_records)/3
draw tile=text name=t21 x1=100 y1=120 size=40 color=#888888 text=@growth_dynamics style=italic weight=bold gravity=center
for #index=0 step=1 to=#_counter_of_records section=loop1
// draw chart for column2
for #index=0 step=1 to=#_counter_of_records section=loop2
// draw chart for column3
for #index=0 step=1 to=#_counter_of_records section=loop3
if #canvas==1
draw tile=rect name=1 x1= 40 y1= 990 x2= 60 y2=1020 color=#0000ff filling=1
draw tile=text name=text1 x1=80 y1=990 color=#0000ff size=30 text=$concate(@product," 1") style=italic
draw tile=rect name=2 x1= 40 y1= 1040 x2= 60 y2=1070 color=#009900 filling=1
draw tile=text name=text2 x1=80 y1=1040 color=#007700 size=30 text=$concate(@product," 2") style=italic
draw tile=rect name=3 x1= 40 y1= 1090 x2= 60 y2=1120 color=#ff0000 filling=1
draw tile=text name=text3 x1=80 y1=1090 color=#ff0000 size=30 text=$concate(@product," 3") style=italic
else
draw tile=rect name=1 x1= 20 y1= 600 x2= 60 y2=640 color=#0000ff filling=1
draw tile=text name=text1 x1=80 y1=600 color=#0000ff size=28 text=$concate(@product," 1") style=italic
draw tile=rect name=2 x1= 20 y1= 650 x2= 60 y2=690 color=#009900 filling=1
draw tile=text name=text2 x1=80 y1=650 color=#009900 size=28 text=$concate(@product," 2") style=italic
draw tile=rect name=3 x1= 20 y1= 700 x2= 60 y2=740 color=#ff0000 filling=1
draw tile=text name=text3 x1=80 y1=700 color=#ff0000 size=28 text=$concate(@product," 3") style=italic
endif
draw canvas=#canvas
end section
---------------------------------------------------------------------------------------
section loop1
#x1= #width_column*3 * #index
#width_rect= #width_column *0.6
#x2=#x1 + #width_rect
#h=#col1_array[#index]
// #height_of_chart is the height of chart
#h=#h / #max* #height_of_chart
#h=$math.round(#h,0)
#y1=#max - #h
#y2=#max
draw tile=rect name=$concat("bar1",#index) x1= #x1+#offsetx y1= #y1 x2= #x2+#offsetx y2=#y2 color=#0000ff filling=1 color_b=black
draw tile=text name=$concat("date",#index) x1= #x1+#offsetx y1=#y2+10 color=#000000 text=#date_array[#index] size=18 weight=bold
end section
------------------------------------------------------------------------------------------
section loop2
#x1= #width_column*3 * #index
#x1=#x1 +#width_column*0.6
#width_rect= #width_column *0.6
#x2=#x1+#width_rect
#h=#col2_array[#index]
// compute height of chart
#h=#h / #max* #height_of_chart
#h =$math.round(#h,0)
#y1=#max- #h
#y2=#max
draw tile=rect name=$concat("bar2",#index) x1= #x1+#offsetx y1= #y1 x2= #x2+#offsetx y2=#y2 color=#009900 filling=1 color_b=#99ff99
end section
------------------------------------------------------------------------------------------------
section loop3
#x1= #width_column*3 * #index
#x1=#x1 +(#width_column + #width_column)*0.6
#width_rect= #width_column *0.6
#x2=#x1+#width_rect
#h=#col3_array[#index]
// compute height of chart
#h=#h / #max* #height_of_chart
#h =$math.round(#h,0)
#y1=#max- #h
#y2=#max
draw tile=rect name=$concat("bar3",#index) x1= #x1+#offsetx y1= #y1 x2= #x2+#offsetx y2=#y2 color=#ff0000 filling=1 color_b=#ff9999
end section
section back
call script= 05_003_draw_graphic
end section
end scene 1
